Selective

Hand Pick

Selective pallet rack when utilized as heavy duty shelving for hand picking allows for static storage of small parts and packages. Selective rack uprights used for shelving are available in depths of 24" to 72", and heights up to 35'. Beams are available in a variety of capacities, and are up to 144"L. Selective pallet rack can be enhanced for hand pick shelving when incorporated with wire decks. Examples of this application include large parts distribution centers and manufacturing inventory storage for just in time delivery. New and used racking available.
Contact Us

Selective

Single Deep

The most commonly seen configuration, Selective Rack allows for static storage of single pallets. Selective Rack uprights are available in depths of 24" to 72", and heights up to 35'. Beams are available in a variety of capacities, and are up to 144"L. Selective rack is commonly used in conjunction with all manufacturers of forklifts including Hyster, Toyota, Cat, Crown, Raymond and Yale in medium desnity storage applications. Our completed projects include metro areas and distribution hubs in Seattle, Kent, Everett, Auburn, Spokane, Eugene, Portland, Oakland, Fremont, Sacramento, Fresno, Bakersfield, Salinas, Reno and Modesto. New and used racking available.
Contact Us

Selective

Double Deep

For increased density, Double Deep Selective Rack allows for static storage of single pallets. Selective pallet rack uprights are available in depths of 24" to 72", and heights up to 35'. Beams are available in a variety of capacities, and are up to 144”L. Double deep rack is commonly used in conjunction with double deep reach forklifts including Crown, Raymond, Hyster and Yale in high desnity storage applications including metro areas and distribution hubs including Seattle, Kent, Auburn, Portland, Oakland, Fremont, Sacramento, Reno and Modesto.
Contact Us

Pushback

Pushback Carts

Used in high-density applications. Pallets are stored on a series of tracks that are accessible from only the front side. Pallets are loaded in with the newest pallets pushing the preceding pallets further back into the rack (FILO – first in last out). As pallets are pulled for shipment, the remaining pallets slide forward.

Pushback Operation Instructions
Contact Us

Pushback

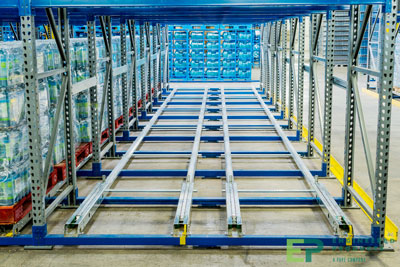

Pushback Pallet Flow

Pushback pallet flow is used in high-density applications. Pallets are stored on a series of tracks that are accessible from only the front side. Pallets are loaded in with the newest pallets pushing the preceding pallets further back into the rack (FILO – first in last out). As pallets are pulled for shipment, the remaining pallets slide forward. Pallets flow to the front of the rack and speed is controlled by the system pitch and brakes.
Contact Us

Drive-In

Drive-In

Also a high-density FILO (first in last out) storage solution, pallets are stored on rails that run the depth of a pallet rack “tunnel”. A forklift operator actually drives into the rack in order to retrieve pallets. Drive in pallet rack is very popular in high density food storage applications in local markets including Yakima, Pasco, Fresno, Salinas, Wenatchee, Bakersfield, Modesto and other agriculture based markets.
Contact Us

Drive-Thru

Drive-Thru

A high-density FIFO (first in first out) or FILO (first in last out) storage solution, pallets are stored on rails that run the depth of a pallet rack “tunnel”. A forklift operator actually drives into the rack in order to retrieve pallets. Drivers have access from both sides. Drive thru pallet rack is very popular in high density food storage applications in local markets including Yakima, Pasco, Fresno, Salinas, Wenatchee, Bakersfield, Modesto and other agriculture based markets. Commonly used in conjunction with Hyster, Crown, Raymond, Toyota and Yale forklifts
Contact Us

Flow Rack

Pallet Flow Rack

Pallet flow is a high-density system often used in food or bulk storage applications. Pallets flow through the system by being loaded onto the back side of the rack, flowing forward on a series of rollers. Pallets are picked from the front, and the remaining pallets slide forward one position. Especially useful in applications where FIFO (first in first out) product loading is important. CLICK HERE FOR BEST PRACTICES IN SAFE OPERATIONS
Contact Us

Wire Deck

Wire Deck

Available in a variety of widths, depths, grid patterns and capacities, wire deck gives added support to pallets while allowing sprinklers to reach lower levels of the racking system.
Contact Us

Wire Deck

Wire Divider

Wire divider is used where pallet rack is treated as handpick shelving, adding separation between SKU's. Available in a variety of widths, depths, grid patterns and capacities, wire deck gives added support to pallets while allowing sprinklers to reach lower levels of the racking system.
Contact Us

Cantilever

Cantilever

Cantilever Rack is the ideal system for storing furniture, steel bars, pipe and tubing, lumber and other long, heavy items that must be kept off the floor. Cantilever provides instant accessibility to one piece or a full load. Being modular in nature, additional arms, uprights and braces may be added as storage requirements change.
Contact Us

Pick Module

Pick Module

Pick modules consist of double-tall pallet rack units with a floor that is suspended from the rack at the halfway point. The pallet rack units on the upper level are configured the same as those on the lower level. Often used in combination with conveyor mid-aisle for quick transfer of materials" at the end.
Contact Us

Deep Lane Shuttle

Deep Lane Shuttle

Engineered Products is the leading distributor for the Pallet Runner by Automha. This semi-automated technology is designed to increase storage density and maximize productivity. Deep lane storage allows for storage depths unattainable by traditional pallet rack systems while maintaining a high level of selectivity.
Contact Us
